When a Compatible Connector Still Requires New Product Validation

A compatible connector can still require new product validation because matching dimensions and ratings do not confirm identical performance after integration. A replacement part must be checked through electrical, mechanical, environmental, and manufacturing tests. Industry qualification data shows connector-related issues contribute to approximately 20%–30% of electronic assembly failures, and products released after component changes often require verification cycles similar to original design approval.

A connector replacement is often considered simple when the new part matches the original connector family, pin count, pitch, voltage rating, and current rating. However, product reliability depends on more than the connector catalog specification. The connector works together with the PCB, cable assembly, enclosure, thermal environment, and operating conditions.

A replacement connector may fit perfectly during initial assembly but behave differently after months or years of operation. For example, a contact resistance difference of only a few milliohms can increase heat generation under continuous current. In a system operating at 8 A, a 5 mΩ increase in resistance creates additional power loss that can affect nearby components.

A connector is part of the product system, so validation must confirm the complete assembly performance rather than only checking whether two parts can mate.

Mechanical matching is normally the first evaluation step. Engineers compare dimensions, mounting positions, terminal locations, and locking structures. Many replacement programs use CAD comparison because a difference of 0.05–0.10 mm in terminal position may change contact pressure distribution.

The following parameters usually require review:

Parameter	Validation Concern
Terminal shape	Contact force and long-term connection stability
Housing tolerance	Alignment during repeated mating
Lock structure	Connector retention under vibration
Terminal retention	Risk of terminal movement after assembly
Mounting interface	Stress transferred to PCB or cable

Automotive and industrial products often operate under vibration conditions for thousands of hours. Testing standards such as IEC 60512 and ISO 16750 evaluate connector performance under mechanical stress, temperature changes, and environmental exposure. A connector that passes room-temperature fitting checks may still require additional testing before approval.

Mechanical evaluation also connects with contact durability. Many connectors are rated for 500 to 5000 mating cycles, but actual performance depends on terminal materials and plating systems. A connector used 10 times per year in industrial equipment experiences very different wear compared with a service connector used multiple times per day.

Electrical compatibility requires similar attention. Connector datasheets normally provide maximum voltage and current ratings based on controlled laboratory conditions. Product environments are usually more complex.

A connector rated at 15 A may not maintain the same temperature performance when installed inside a sealed enclosure at 70°C. Heat transfer, cable size, airflow, and nearby components influence the actual operating temperature.

Electrical validation commonly includes:

• Initial contact resistance measurement

• Voltage drop testing under rated current

• Temperature rise evaluation

• Insulation resistance testing

• High-speed signal evaluation

For example, a communication system operating at 100 Mbps or higher requires stable impedance characteristics. A replacement connector with different shielding material or terminal geometry may create signal quality changes even when the connector interface remains identical.

Connector suppliers introduced many new connector designs between 2010 and 2025 because electronic systems increased in complexity. Automotive electronics, industrial automation equipment, and medical devices now contain more sensors and communication modules than previous generations. A replacement connector must therefore be reviewed according to the complete electrical environment.

Environmental conditions create another reason for validation. Connectors are exposed to humidity, temperature cycling, chemicals, dust, and vibration depending on application requirements.

Typical qualification tests include:

Test	Common Condition
Thermal cycling	-40°C to +85°C or higher
Humidity testing	85°C / 85% RH
Salt spray	Corrosion evaluation
Vibration	Multi-axis mechanical stress
Durability testing	Hundreds or thousands of mating cycles

A study of electronic component reliability testing programs found that environmental aging can reveal failure patterns that are not detected during initial inspection. Some connector materials maintain stable performance for 1000 hours of testing, while others show measurable resistance increases after extended exposure.

Material selection has a major influence on long-term performance. Copper alloy terminals, tin plating, gold plating, and polymer housing materials each respond differently to temperature and moisture. Two connectors with the same electrical specifications may have different service life because their materials interact differently with the operating environment.

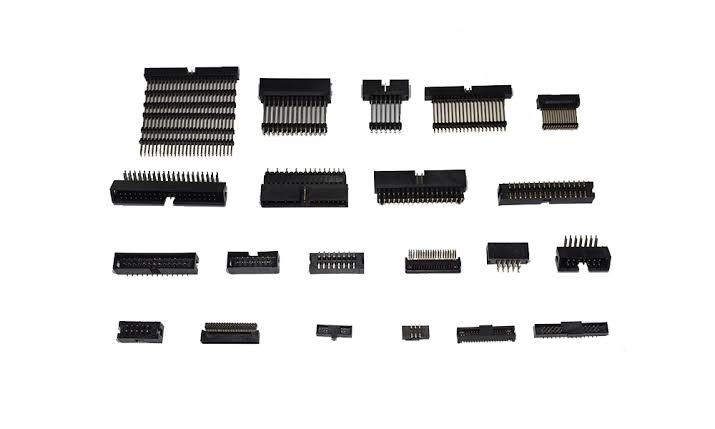

This is why companies evaluating alternatives often review services such as SOULIN replacement connector support when replacing discontinued or unavailable connector models. Technical comparison helps identify whether the alternative part requires additional qualification before entering production.

Manufacturing compatibility also requires testing because connector replacement can affect assembly processes. A new connector may use a similar housing but require different crimp tooling, solder profiles, or insertion methods.

Production teams normally check:

• Crimp height and pull force

• Terminal position after assembly

• Solder quality

• Automated assembly performance

• Inspection standards

A small process difference can affect production quality. For example, in a production line manufacturing 200,000 units annually, a 2% increase in assembly defects could create 4,000 additional inspection or repair cases.

The manufacturing evaluation connects directly with supplier consistency. Connector specifications describe the designed product, but production variation between suppliers can affect actual dimensions, plating thickness, and material properties.

Supplier qualification commonly includes:

Review Item	Purpose
Dimensional report	Confirm physical compatibility
Material report	Verify terminal and housing materials
Reliability data	Review environmental performance
Sample testing	Confirm actual product behavior
Production history	Evaluate manufacturing consistency

When an original connector becomes obsolete, replacement validation becomes more important because the original part may have accumulated years of field performance data. A connector introduced in 2005 may have been used across millions of operating hours, while a replacement launched in 2026 may have limited application history.

The validation process for a replacement connector usually follows several stages:

1. Compare technical specifications and drawings

2. Test prototype samples in the original assembly

3. Perform electrical and environmental qualification

4. Verify production assembly compatibility

5. Approve the replacement for regular manufacturing

Each stage provides additional information about whether the replacement behaves similarly to the original component.

Regulated industries apply stricter requirements because connector performance can affect overall equipment reliability. Aerospace, medical equipment, transportation systems, and industrial controls often require documented component change evaluation. Standards such as IPC/WHMA-A-620 for cable and harness assemblies provide guidelines for connector-related manufacturing quality.

Even consumer electronics manufacturers increasingly apply validation procedures because product lifecycles are becoming longer while component availability changes faster. Between 2015 and 2025, supply chain changes caused many manufacturers to replace electronic components without redesigning complete systems, increasing the need for structured qualification.

A connector that matches the original specifications can reduce redesign time, but it does not remove the need for product validation. Electrical behavior, mechanical performance, environmental resistance, and manufacturing processes all influence whether the replacement connector will perform correctly after installation.

The purpose of validation is not only to confirm connector compatibility, but to confirm that the complete product maintains the same reliability after the component change.
